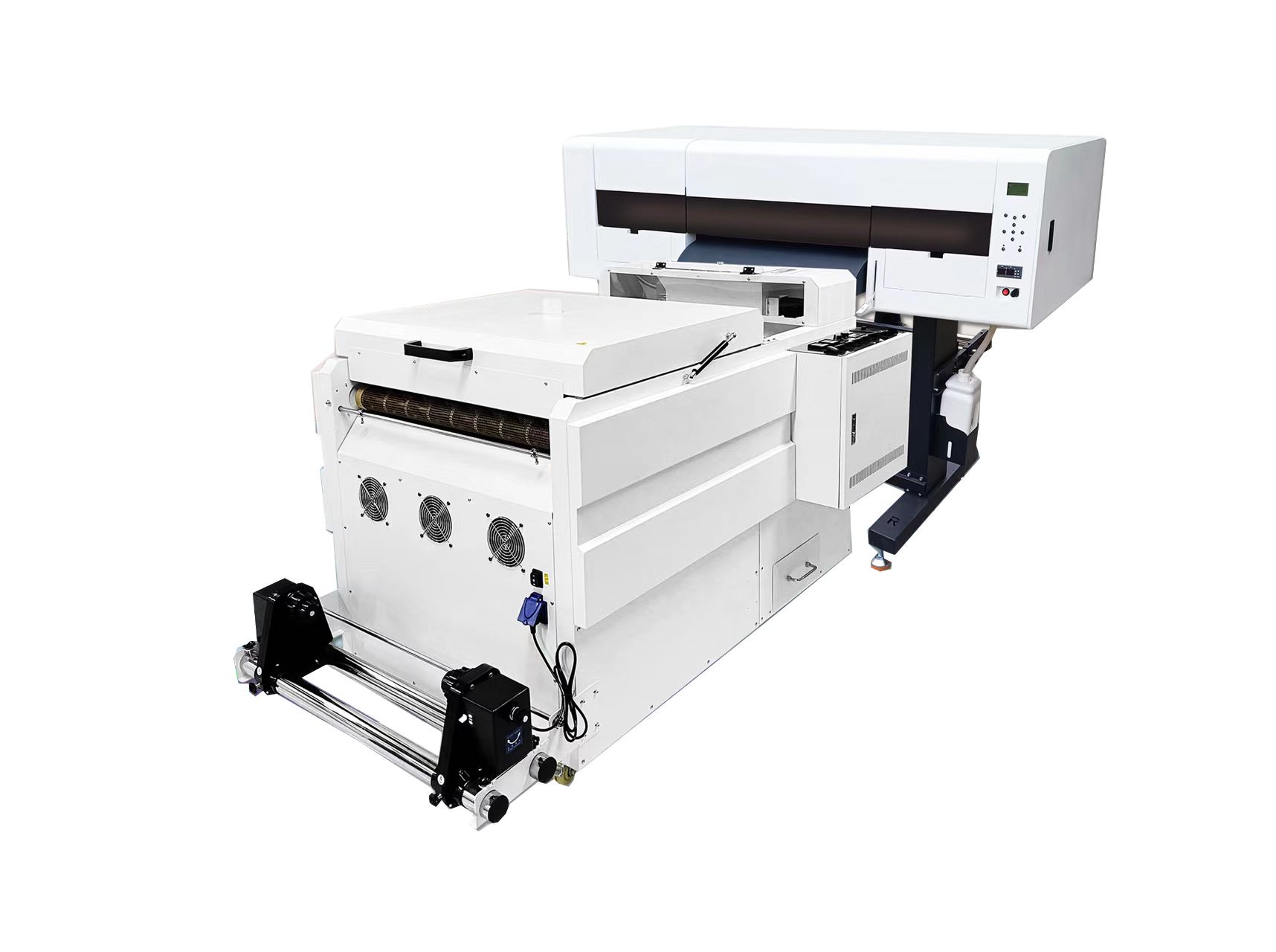

Your location:Home → Product → Garment series → A1-60CM-3200- 2195USD/SET
Description
1. Digital heat transfer direct injection is a new type of technology that is printed on the transfer film, and the hot melt powder is used as the transfer medium to transfer the ink on the clothes through the ink on the surface of the pattern;
2. Hot-melt powder baking equipment: oven, baking lamp, etc., just melt the hot-melt powder sticking to the pattern;
3. Transfer tool: pressing machine;
4. Air purifier: purify smoke;
5. The heat transfer temperature is 150-160℃, pressing for 15 seconds;
Technical parameters and specifications
machine type | BT300 |
Print head | Epson 3200 print head, double head |
printing speed | 10-14 square meters |
Board | Beijing board, optional |
Printing software | Montesoft |
Ink type | C M Y K + W |
Print media | Transfer film |
working environment | Temperature: 15℃-30℃, humidity 45%-95% |
Moisturizing mode | Fully automatic moisturizing cleaning |
Transmission level | USB3.0 |
Print wide | 600mm |
Image Format | JPG,TIFF,PDF |
Machine size | 1500*600*1200mm |
Power supply parameters | Rated voltage: AC220V Frequency: 50/60HZ |
weight | 160KG |
System Requirements | win7 64bit |
